David III Loom

"Small but Mighty"

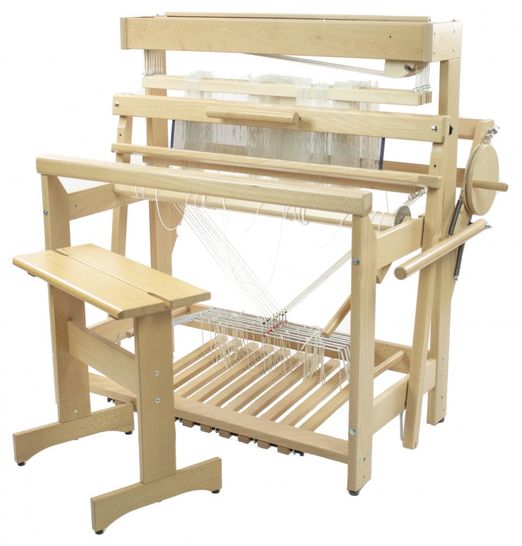

Named after David and Goliath, David is a compact 8 harness floor loom loaded with functionality. The David is a unique sinking shed jack loom with a 3" shed and has become a very popular compact floor loom. David comes standard with 8 harnesses and while he may look modest, he has tremendous functionality and the weaving experience surpasses many large floor looms. Smooth and light-weight treadles due to a cam system give the David treadles a mechanical advantage. Weaving on this loom gives you a real appreciation for the word balance.

Like a jack loom, it has a singular tie-up . All harnesses sit in the up position. The harnesses that need to move to create a shed are pulled down by an ingenious spring system. The spring system also results in easy treadling: once the treadle is pushed down, the weight of your leg is sufficient to keep the shed open.

Available in three sizes:

• David 70: 27 ½″ (70 cm) weaving width

• David 90: 35″ (90 cm) weaving width

• David 110: 43 ½” (110 cm) weaving width

Features:

• 8 harnesses

• Sinking shed loom

• 3” inch shed

• Built-in raddle and wooden raddle covers

• Standing beater, with a hinge point close to the floor, the result is smooth movement and a favorable pivot radius to strike the fell line.

• Removable beater & breastbeam for easy threading

• Tension brake on warp beam

• Brake disc with rotating crank handle

• Back beam folds in for easy storage

• Made of lacquered beech

• Castle section comes pre-assembled with built-in raddle and shelf

Included with the David Loom are:

• Stainless steel reed 40-10 (10 dpi)

• 800 Texsolv heddles (280 mm)

• Tie-up and lease sticks

• Sixteen warp sticks

• Assembly instructions & tools

• Warping instructions

JST covers all the shipping and import duties and tariffs for all Louet looms so the price you see on the checkout screen is the final price you would pay for the loom (no surprises).
